AA400 series anchors for concrete structures

AA400 Series anchors

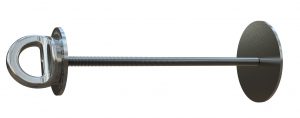

AA400T Download Description
Specs
Install
Certificate
  • M12 Welded Eyebolt through bolt anchor point
    300mm + 120mm & 80mm disc + M12 nylock nut
  • All parts grade 316 s/s

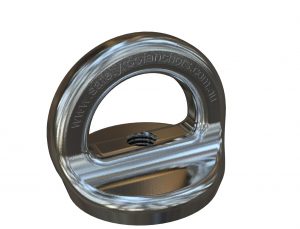

AA401 Download Description
Specs
Install
Certificate
  • M12 eye nut
  • Multi directional loading
  • Investment cast grade 316 s/s

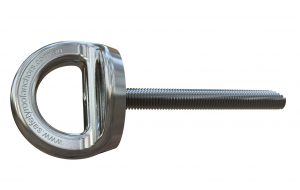

AA402 Download Description
 Specs
 Install
 Certificate
  • M12 Eye bolt anchor point
  • Investment cast grade 316 s/s
  • M12 x110mm
  • Eye Diameter 18mm
  • Overall length 150mm

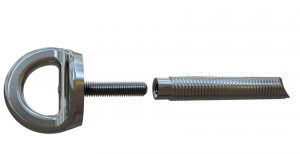

AA402HIS Download Description
   Specs
 Install
 Certificate
  • M12 Welded Eyebolt Kit With M12 Hilti HIS-RN internally threaded rod
  • All parts grade 316 s/s

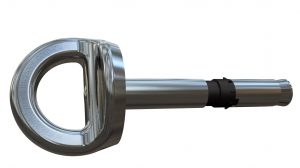

AA402HSL Download Description
 Specs
 Install
Certificate
  • M12 Welded Eyebolt Kit With M12 Hilti HSL-R
  • All parts grade 316 s/s

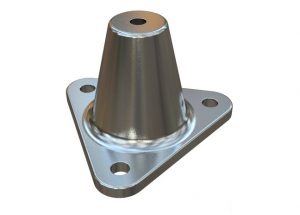

AA404 Download Description
 Specs
 Install
  • Pedestal
  • Total height 100mm
  • Grade 316 s/s

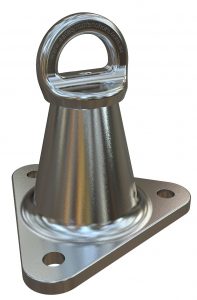

AA404P Download Description
 Specs
 Install
 Certificate
  • Pedestal with M12 welded swivel Eye Bolt
  • Total height 150mm
  • All parts grade 316 s/s

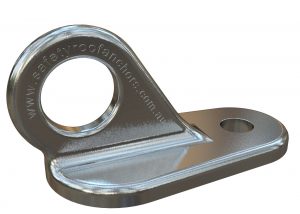

AA406 Download Description
 Specs
 Install
 Certificate
  • 360˚ swivel anchor for concrete and steel
  • M12 fixing hole
  • Investment cast grade 316 s/s
AA406K Download Description
 Specs
 Install
 Certificate
  • 360° swivel anchor kit
  • AA407 anchor, 120mm disc, M12 x 155mm rod, M12 locknut, 2x M12 hex nut, flat washer
  • All parts grade 316 s/s

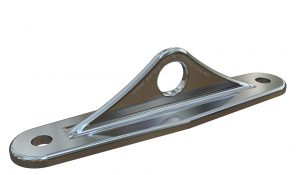

AA408 Download Description
   Specs
 Install
 Certificate
  • Double bolt anchor point for tensile loading applications
  • M12 fixing holes
  • Investment cast grade 316 s/s

Backing Plates

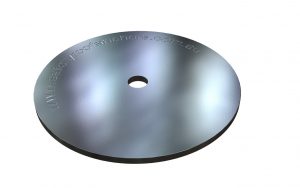

BP1 Download Description
   Specs
  • Backing plate 120mm x 4mm
  • M12 fixing hole
  • Grade 316 s/s

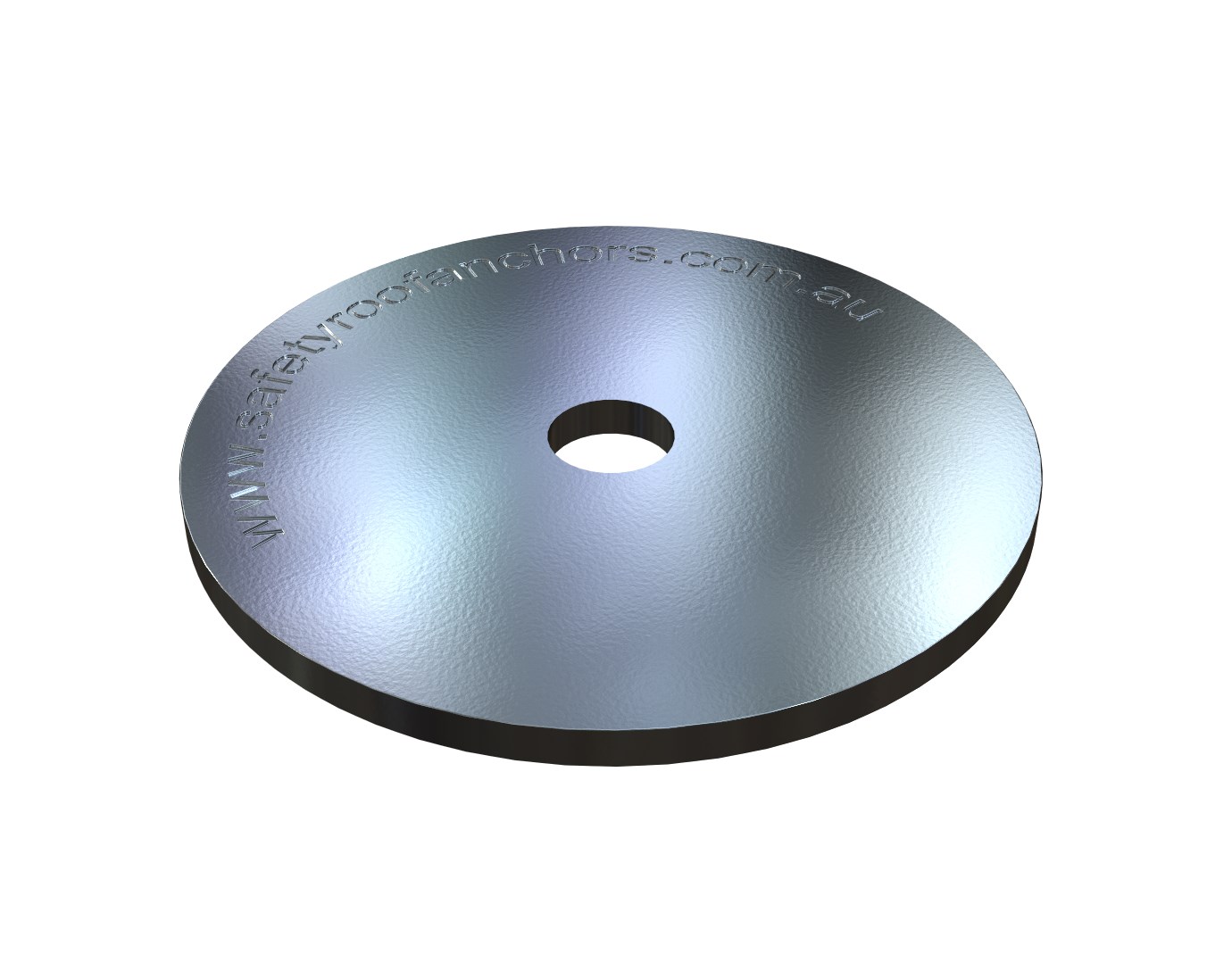

BP2 Download Description
 Specs
  • Backing plate 80mm x 4mm
  • M12 fixing hole
  • Grade 316 s/s

Access Anchor 400 Series has been designed primarily for applications in rope access however all SRA anchor points can be used as fall arrest anchors provided that a suitable personal shock absorber is used.

The 400 Series is intended for use for use in concrete and steel structures either via chemset, mechanical or through bolt fixing.

We recommend that only Hilti chemicals are used in conjunction with our products. We also recommend that Hilti installation guidelines are observed when installing into concrete.

See all A400 series Videos here

AA408 Installation
