Profile Grips

PG1 Download Description
  Specs
Install
Video
Certificate

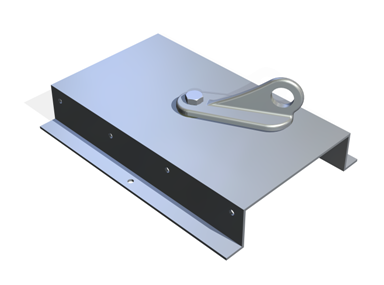

  • Rope Access / Fall Arrest 360° swivel anchor suitable for profiled metal roofs (fits square Brownbilt/Longline profile)
  • All parts grade 316 S/S
PG2 Download Description
  Specs
Install
Video
Certificate
  • Rope Access / Fall Arrest 360° swivel anchor suitable for profiled metal roofs (fits square Longline 305 profile)
  • All parts grade 316 S/S

Australian Patent 2004218599

Specs:

  • Profile Grip-safetyroofanchors.com.auCan be manufactured to fit any steel roof
  • 3mm thick grade 316 stainless steel
  • The 360˚ swivel anchor is made of grade 316 stainless steel.
  • Withstands both static and dynamic loads well over 15 kN even on timber roof structures¹
  • Top fixed with with 8 bulbtite rivets and 2 screws into the underlying purlin or batten

Key Features and Benefits:

  • Engineered for both rope access and fall arrest
  • Engineered for both timber and steel roof structures
  • Superior loading properties due to unique way of fixing, ultra low profile and 360˚swivel action
  • Available in grade 316 stainless steel and any Colorbond color on request
  • Each profile grip is prepared with neoprene seals on the contact points to prevent corrosion between dissimilar metals and to aid waterproofing
  • Quality made in Australia

¹ – Before the installation always ensure adequacy of the roof structure. If unsure, consult a structural engineer!



Profile Grip Dynamic Load Test

Fall factor 1 with a 100Kg weight on a steel sheet with a timber structure

Profile Grip Static Load Test

Testing the strength of the Profile Grip – exerting an ever increasing weight up to 2600kg at which point the karabiner fails. Best viewed at full screen size.
