Surface mount & purlin anchors for steel roofs

Allfit 360° Download Description
Specs
Install
  • Rope Access / Fall Arrest 360° swivel anchor suitable for most types of profiled metal roofs
  • All parts grade 316 S/S
  • comes with all fixings
PG1 Download Description
  Specs
Install
Video
Certificate
  • Rope Access / Fall Arrest 360° swivel anchor suitable for Longline 305 roof profile
  • All parts grade 316 S/S
PG2 Download Description
  Specs
Install
Video
Certificate
  • Rope Access / Fall Arrest 360° swivel anchor suitable for suitable for Brownbilt 406 roof profile
  • All parts grade 316 S/S
Maxifit 360° Download Description
Specs

Video
Certificate

  • Rope Access / Fall Arrest 360° swivel anchor suitable for profiled metal roofs
  • All parts grade 316 S/S

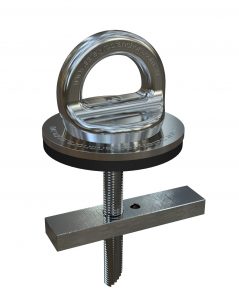

AA403 Download Description
 Specs
 Install
 Certificate
  • M12 Purlin Anchor
  • Ultimate strength 15Kn
  • Investment cast grade 316 s/s
  • 700 Mpa Rod M12 x 110mm

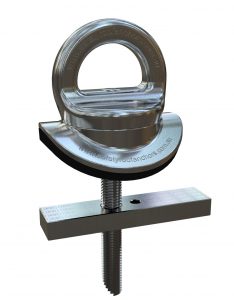

AA403C Download Description
 Specs
 Install
 Certificate
  • M12 Purlin Anchor
  • Ultimate strength 15Kn
  • Investment cast grade 316 s/s
  • 700 Mpa Rod M12 x 110mm



Allfit 360° Destruction Test

Dynamic testing of the Allfit 360° surface mount.

Profile Grip Dynamic Load Test

Fall factor 1 with a 100Kg weight on a steel sheet with a timber structure.

Profile Grip Static Load Test

Testing the strength of the Profile Grip – exerting an ever increasing weight up to 2600kg at which point the karabiner fails. Best viewed at full screen size.



SRA SURFACE MOUNT ANCHOR POINTS



Surface mount anchor points for steel roofs offer rapid installation and 100% reliability when installed according to SRA instructions. Installation doesn’t require access to the underlying structure be it timber or steel. Each surface mount anchor is installed with 2x 14g screws into the underlying structure and 8 bulb tite rivets.

Allfit360° swivel anchor is supplied in 2 thicknesses (2mm and 3mm). More affordable 2mm plate is designed for fall arrest only while the 3mm more durable version works well in both rope access and fall arrest applications as well as a static line carrier.

Allfit360 is fast to install and fits most of the roof profiles. It isn’t suitable for roof profiles such as Brownbuilt, Longline and Spandeck.



Allfit360



Profile Grip range of anchors is designed for specific profiles and is patented in Australia (Patent 2004218599)

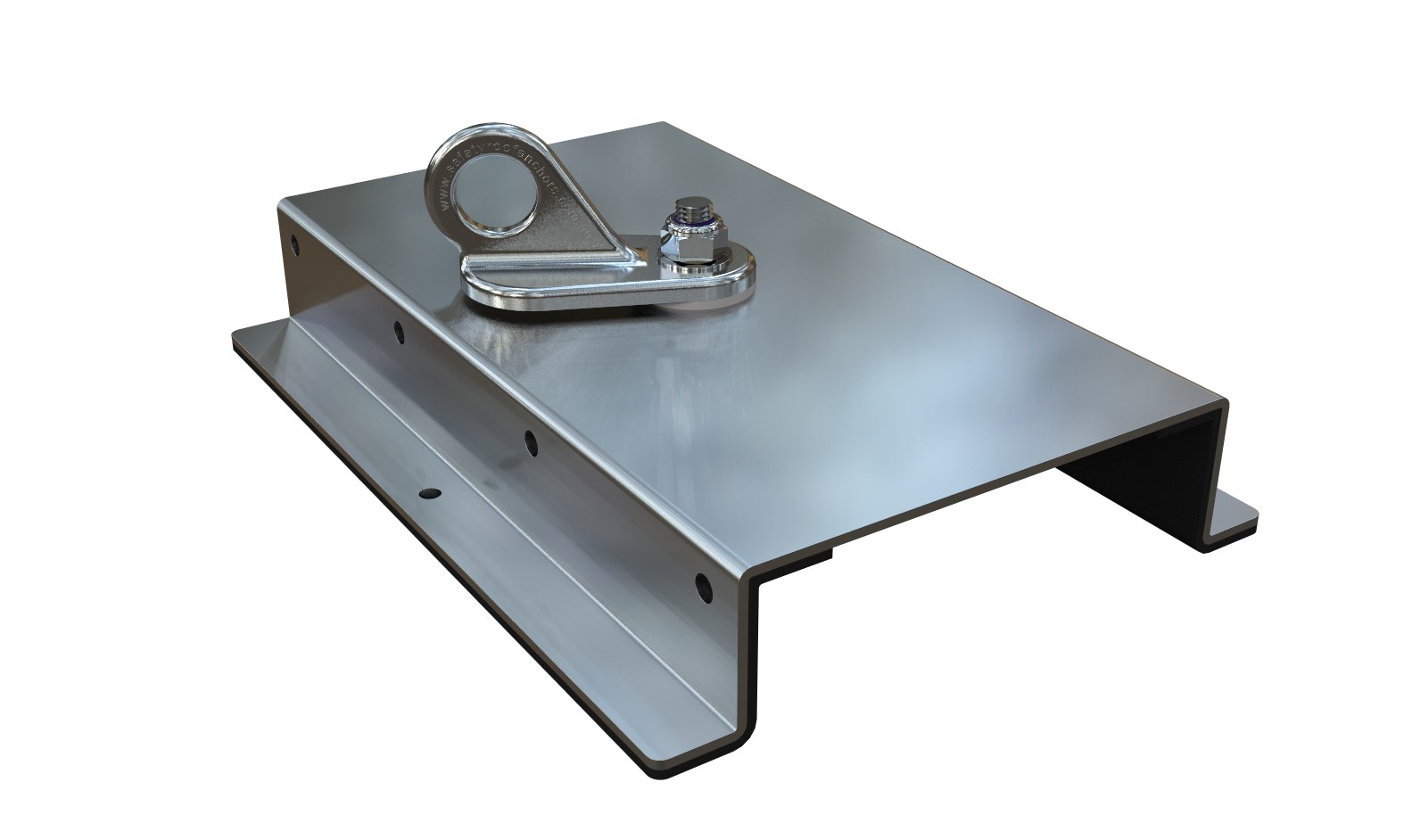

Profile Grip PG1 Longline has been developed specifically for the Longline 305 profile. It is suitable for all applications including fall arrest, rope access and static line support.



PG1

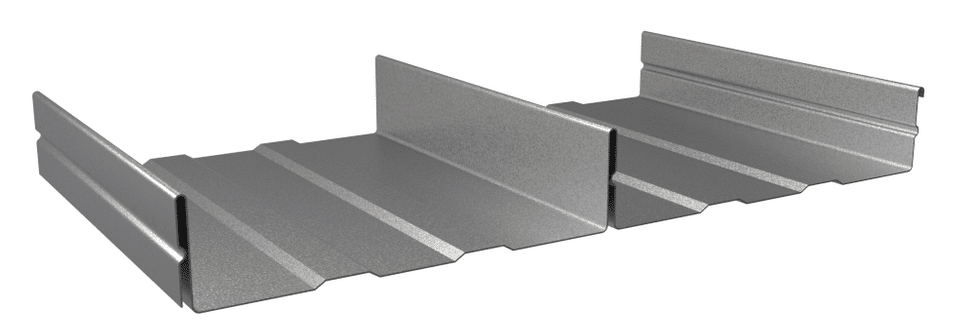

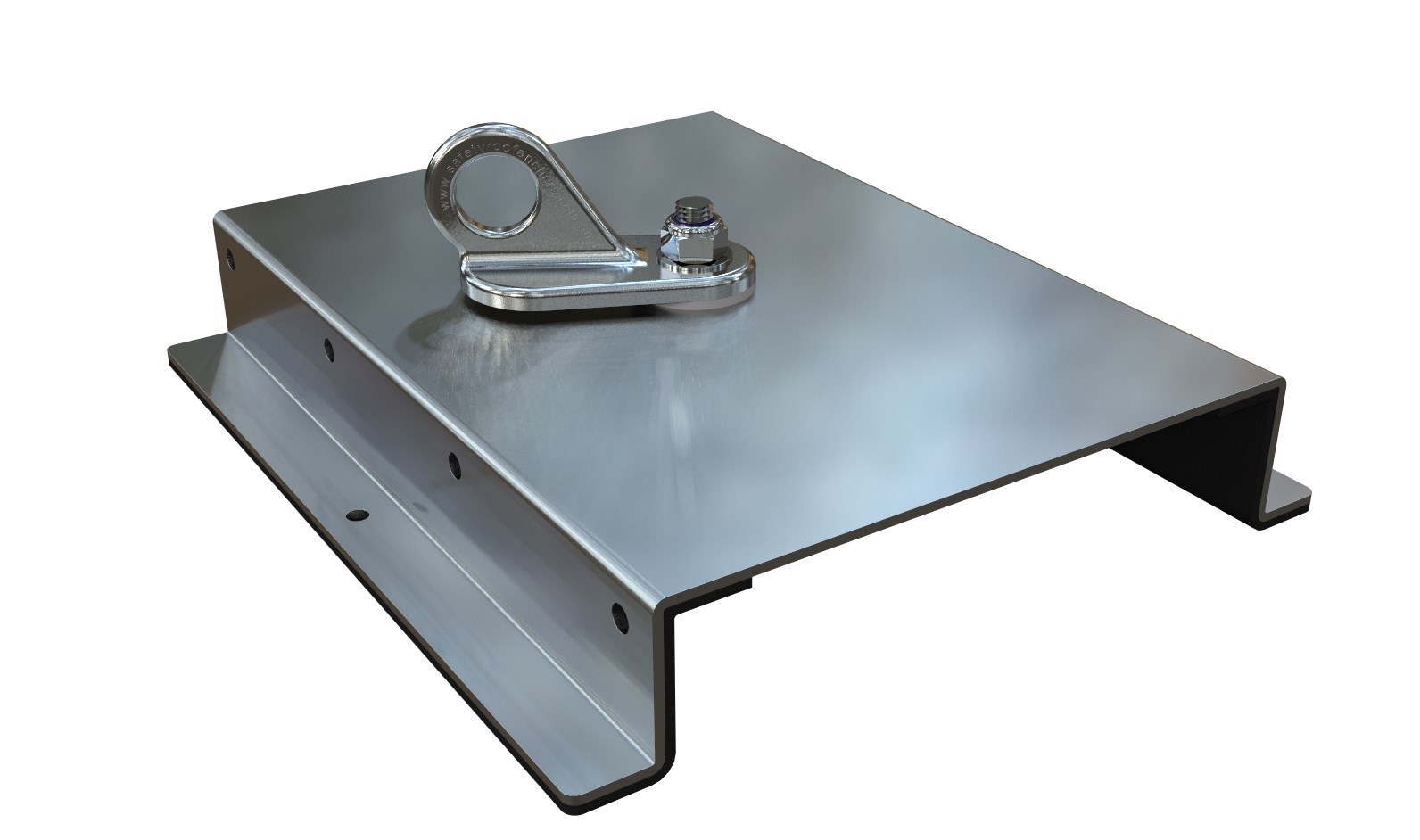

Profile Grip PG2 Brownbuilt has been developed specifically for the Brownbuilt 406 profile. It is suitable for all applications including fall arrest, rope access and static line support.

PG2

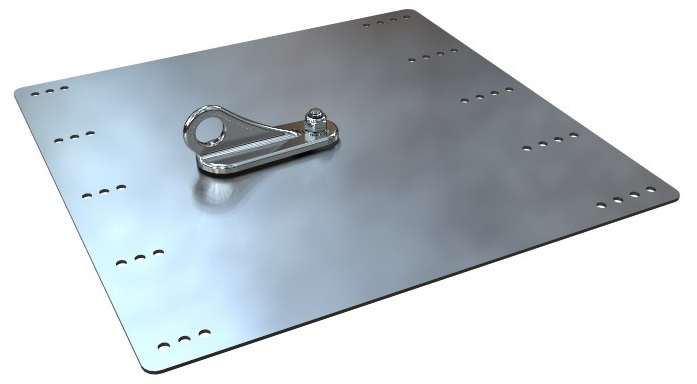

Maxifit 360° is similar to Allfit360° in design however much larger. It is designed for Lysaght Spandek roof profile as well as some profiles in New Zealand.

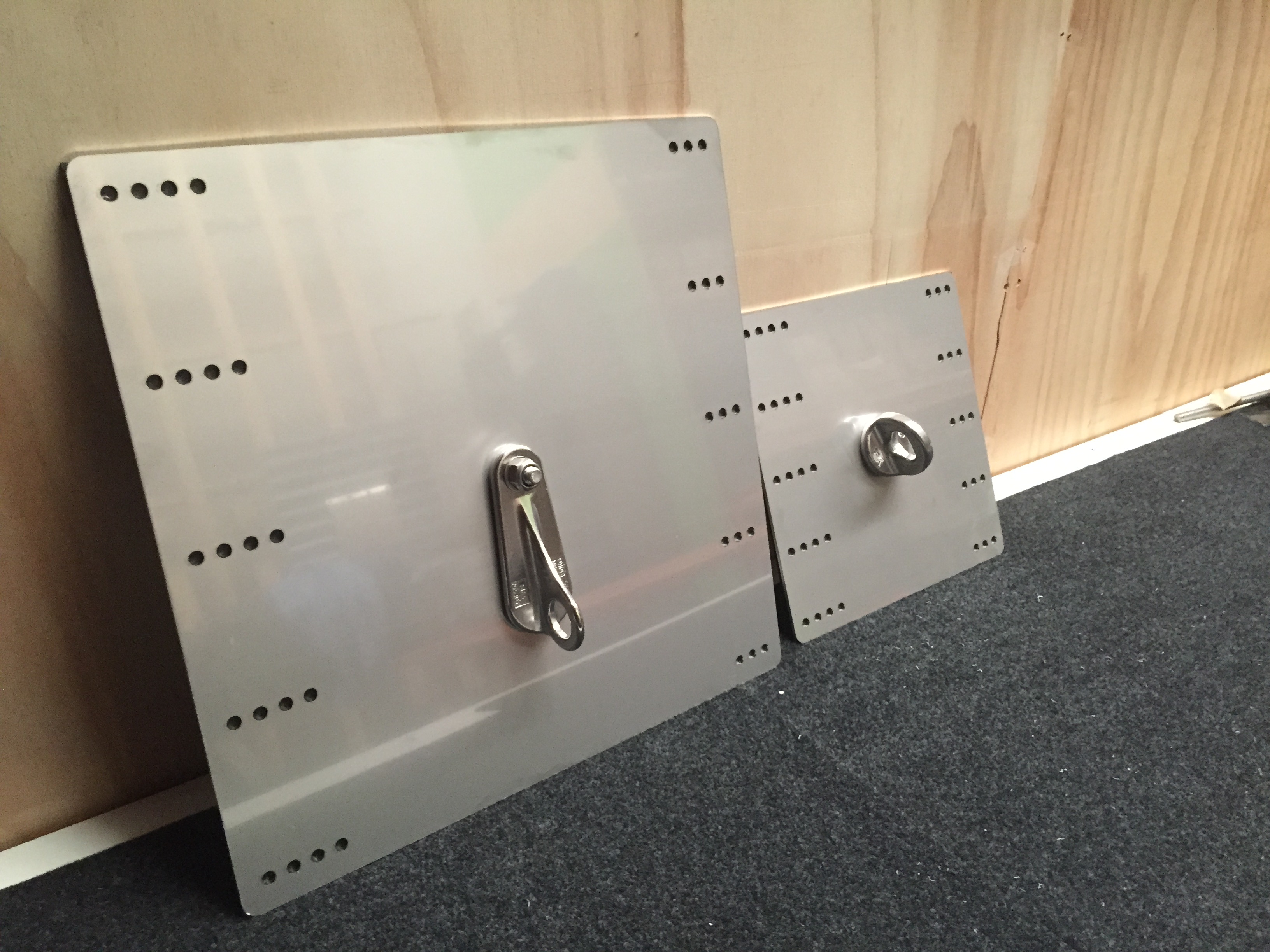

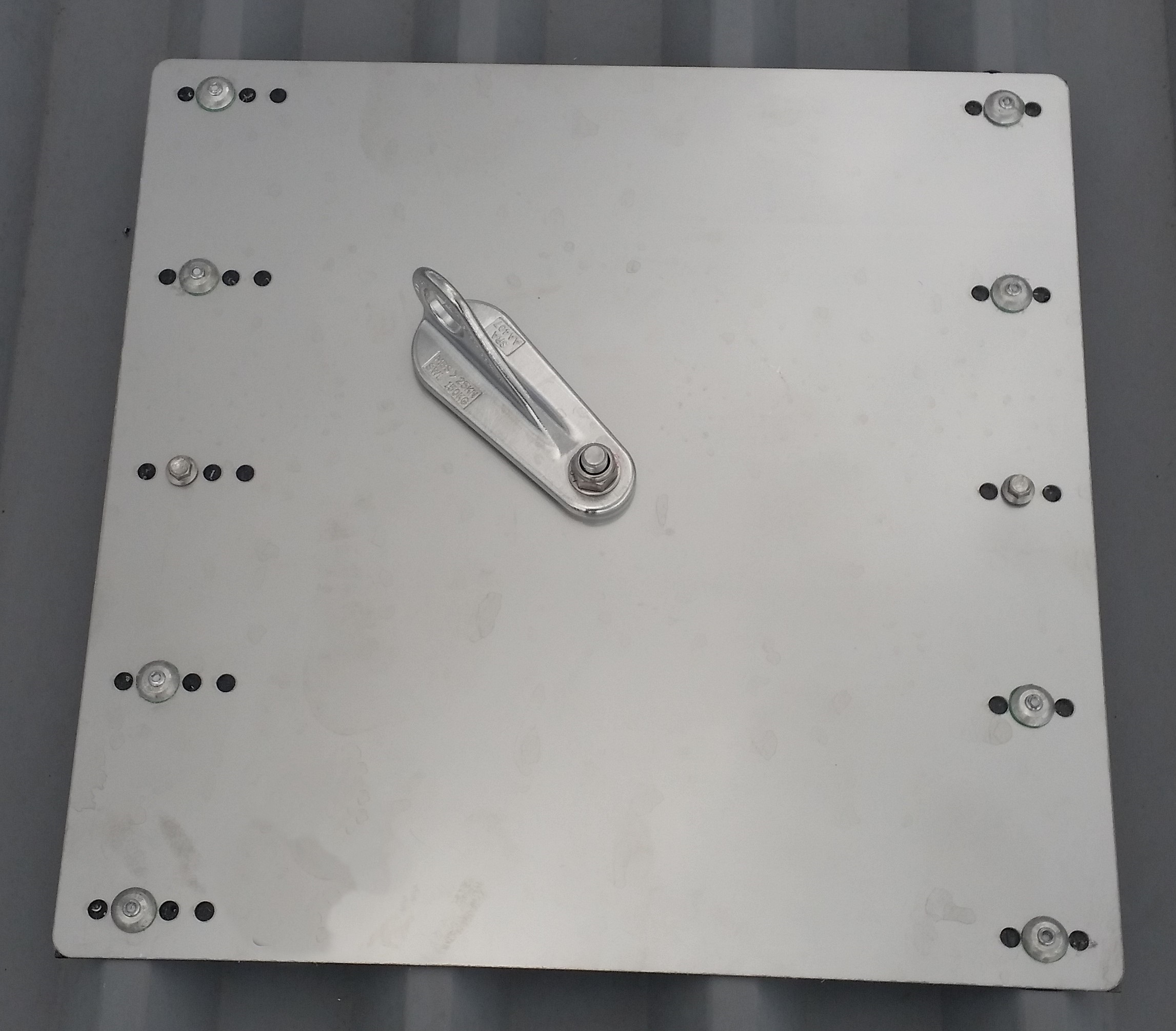

Maxifit360° can be used for fall arrest, rope access and to support a static line. Shown below is the size difference when compared to Allfit360° and installed Maxifit360° on the Spandek roof sheet.
